Impedance Tube

Alfa Acoustic Impedance tube is designed to measure sound absorption coefficient as per test standards ASTM E1050 / ISO 10534-2. The measurement software is based on the Transfer Function Method. The Transfer Function method separates the incident and reflected energy from the measured transfer function, and then estimates the acoustic properties of the test sample. The sound transmission loss module is as per ASTM E2611. Alfa Acoustics offers complete set of Impedance Tube system, which includes: the tubes, microphones; Data Acquisition hardware and measurement software.

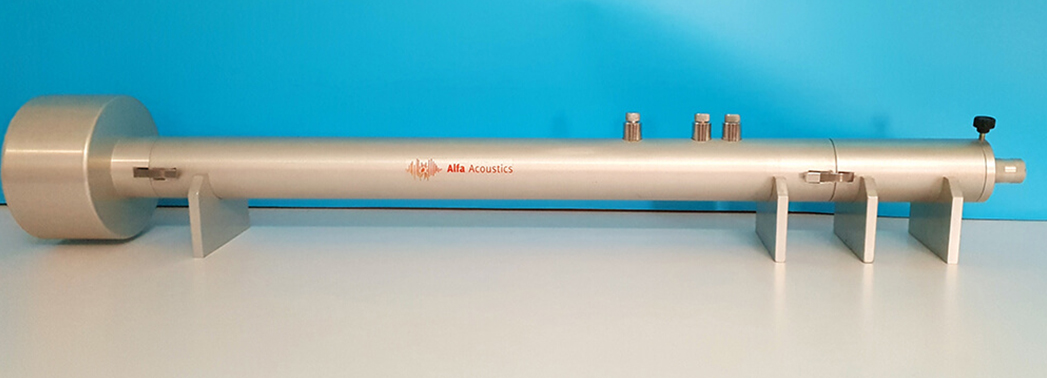

Two Microphone Impedance Tube

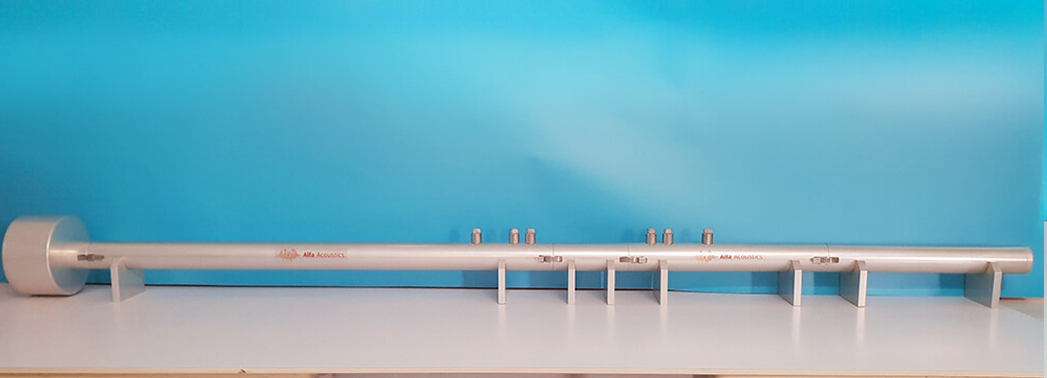

Four Microphone Transmission Loss Tube

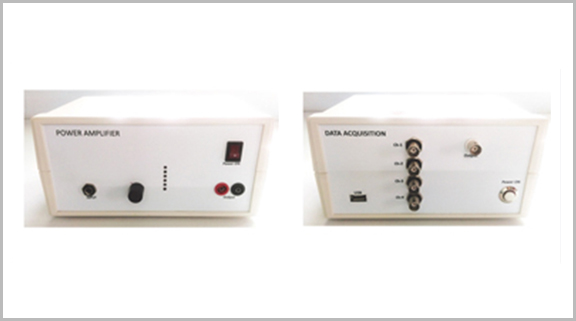

Power Amplifier and Data Acquisition System

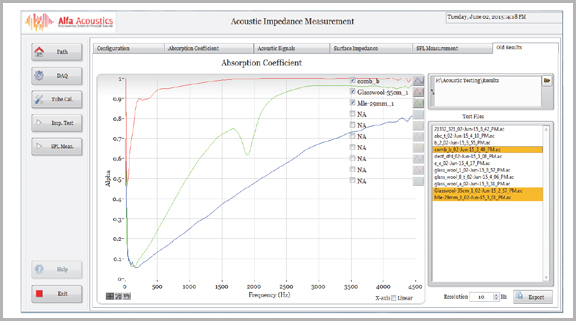

Typical Test Results-Sound Absorption Coefficient

Technical Specifications
Impedance Tube Set
Tube Large Small Medium
Internal Diameter (mm) 100 29 45
Sound Absorption Standards ASTM E1050 / ISO 10534-2
Sound Transmission Loss Standard ASTM E2611
Frequency Range (Hz)
100 - 1600 700 - 6300 100 - 4500
Microphones ¼”, Pressure Field –4 Nos
Loudspeaker 4" in diameter, 15 Watts, 6 Ohm
Salient Features
  • Designed as per International and National Standards
  • Low Cost and Lightweight Solution
  • Quick and Simple to use
  • Measurement of Surface Properties like Reflection Coefficient, Surface Impedance
  • Direct data export to excel sheet
Impedance Tube for Pavement Absorption

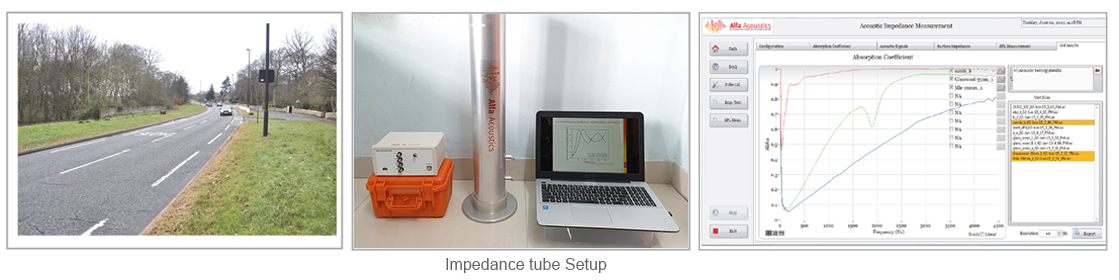

Alfa Acoustic Impedance tube is designed to measure sound absorption coefficient of road surfaces as per standard ISO 13472-2 which is regulated by standards ISO 10844 / IS 3028. As per the standard ISO 13472-2, this tube is vertically mounted on the road surface to measure sound absorption coefficient at normal incidence with the help of specially designed base structure. This special design eliminates the need of drilling a sample in the road surface. Alfa Acoustics offers complete set of Impedance Tube system, which includes: the tube, microphones; Data Acquisition hardware and measurement software.

Technical Specifications
Portable Pavement Absorption Tube
Tube Large
Internal Diameter (mm) 100
Standards ISO 13472-2
Frequency Range (Hz) 200 –1800
Microphones ¼”, Pressure Field
Salient Features
  • Designed as per International and National Standards
  • Low Cost and Lightweight Solution
  • Quick and Simple to use
  • Measurement of Sound Absorption Coefficient
  • Measurement of Surface Properties like Reflection Coefficient, Surface Impedance
  • Direct data export to excel sheet
  • User friendly software Interface
